1 |
VOLUME PCB ASS'Y
1 VOLUME
|
|
VOLUME PCB ASS'Y
1 VOLUME
AHM20PCB016
|
|
|
1.1 |
MOTOR ASS'Y
KGC-0030-3657U1-03 WITH SHAFT
|
|
MOTOR ASS'Y
KGC-0030-3657U1-03 WITH SHAFT
AZZZ0MOT005
|
|
|
1.1.1 |

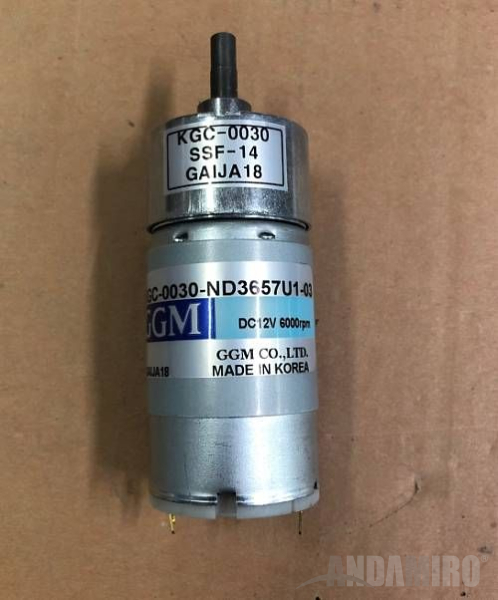

MOTOR CODE CHANGE
KGC-0030-3657U1-03 AZZZ0MOT005
|
|
MOTOR CODE CHANGE
KGC-0030-3657U1-03 AZZZ0MOT005
MZZZ0MOT140
|
|
|
2 |
CARD DISPENSER ASS'Y
|
|
AKIS0ASS001
|
|
|
3 |
CHIP RAIL ASS'Y
|
|
AKIS0ASS005
|
|
|
4 |
COIN RAIL ASS'Y
OPTION
|
|
AKIS0ASS006
|
|
|
4.1.1 |
CARD BAR CODE READER BKT
.
|
|
CARD BAR CODE READER BKT
.
MKIS0MEP007
|
|
|
5 |
TICKET DOOR ASS'Y
|
|
AKIS0ASS007
|
|
|
6 |
PRINTER DOOR ASS'Y
OPTION
|
|
PRINTER DOOR ASS'Y
OPTION
AKIS0ASS008
|
|
|
6.1.1 |
BARCODE READER HONEYWELL-3330G
WITH LICENSE
|
|
BARCODE READER HONEYWELL-3330G
WITH LICENSE
AZZZ0ASS054
|
|
|
6.2.1 |
CARD DISPENSER FRAME SPACER
.
|
|
CARD DISPENSER FRAME SPACER
.
MKIS0PRO004
|
|
|
6.3.1 |
TIMMING BELT TENSION GUIDE BKT
.
|
|
TIMMING BELT TENSION GUIDE BKT
.
MSBP0MEP153
|
|
|
7 |
LED PCB ASS'Y
KIOSK
|
|
AKIS0PCB002
|
|
|
7.1.1 |
COLOR SENSOR PCB ASS'Y
CHIP RAIL
|
|
COLOR SENSOR PCB ASS'Y
CHIP RAIL
AKIS0PCB008
|
|
|
8 |
KIOSK IO PCB ASS'Y
KIOSK
|
|
AKIS0PCB003
|
|
|
8.1.1 |
BUTTON SWITCH
TICKET AM1PB-26SH R12D
|
|
BUTTON SWITCH
TICKET AM1PB-26SH R12D
MMUM0BUT002
|
|
|
9 |
AUTO POWER PCB ASS'Y
KIOSK_V1
|
|
AUTO POWER PCB ASS'Y
KIOSK_V1
AKIS0PCB010
|
|
|
9.1.1 |
LED PCB ASS'Y
KIOSK
|
|
AKIS0PCB002
|
|
|
9.2.1 |
KIOSK CHIP MAIN PCB ASS'Y
CHIP RAIL
|
|
KIOSK CHIP MAIN PCB ASS'Y
CHIP RAIL
AKIS0PCB007
|
|
|
9.3.1 |
VGA ANGLE PCB ASS'Y
KIOSK
|
|
VGA ANGLE PCB ASS'Y
KIOSK
AKIS0PCB009
|
|
|
10 |
AUTO POWER V2 PCB ASS'Y
KIOSK_V2
|
|
AUTO POWER V2 PCB ASS'Y
KIOSK_V2
AKIS0PCB011
|
|
|
11 |
PROGRAM WITH SSD V1_OLD
FOR_GA-N3160TN
|
|
PROGRAM WITH SSD V1_OLD
FOR_GA-N3160TN
AZZZ0MEM001
|
|
|
12 |
PROGRAM WITH SSD V2_NEW
FOR BIELK IHT-R05
|
|
PROGRAM WITH SSD V2_NEW
FOR BIELK IHT-R05
AZZZ0MEM002
|
|
|
12.1.1 |
SSD
HP S700 120
|
|
MZZZ0MEM025
|
|
|
13 |
LED BAR 12V ASS'Y
460MM
|
|
AZZZ0PCB124
|
|
|
14 |
MAIN BOARD V1
GA-N3160TN
|
|
AZZZ0PCB186
|
|
|
15 |
MAIN BOARD V2
BIOSTAR BIELK IHT-R05
|
|
MAIN BOARD V2
BIOSTAR BIELK IHT-R05
AZZZ0PCB221
|
|
|
16 |
LED STICK BAR BRK
12MM 90도
|
|
LED STICK BAR BRK
12MM 90도
MELE0000022
|
|
|
16.1.1 |
PHOTO INT-1 PCB ASS'Y
ANGLE TYPE
|
|
PHOTO INT-1 PCB ASS'Y
ANGLE TYPE
AZZZ0PCB103
|
|
|
17 |
AC POWER CORD UL
125V_10A_SVT 3/18AWG 1.8M
|
|
AC POWER CORD UL
125V_10A_SVT 3/18AWG 1.8M
MELE0ACP001
|
|
|
18 |
AC POWER CORD
250V 16A KKP-4819R CE 1.8M
|
|
AC POWER CORD
250V 16A KKP-4819R CE 1.8M
MELE0ACP008
|
|
|
19 |
FUSE 10A
0218010.MXP 250V,10A,4PA
|
|
FUSE 10A
0218010.MXP 250V,10A,4PA
MELE0FUS018
|
|
|
20 |
FLEX_3528_GREEN_1150_NWP_L_69
T3528 TOP300구 69알
|
|
FLEX_3528_GREEN_1150_NWP_L_69
T3528 TOP300구 69알
MELE0LED061
|
|
|
20.1.1 |
SOLENOID ASS'Y
.
|
|
AKIS0ASS013
|
|
|
20.2.1 |
RFID CARD SENSOR PCB ASS'Y
CARD DIS, CHIP RAIL
|
|
RFID CARD SENSOR PCB ASS'Y
CARD DIS, CHIP RAIL
AKIS0PCB005
|
|
|
20.3.1 |
SOLENOID
DS06AS12V
|
|
MELE0SOL004
|
|
|
20.3.1 |
SOLENOID SHAFT_KIOSK
.
|
|
MKIS0PRO006
|
|
|
20.4 |
SOLENOID
DS06AS12V_W/TAP
|
|
MELE0SOL005
|
|
|
20.5 |
SOLENOID
DS08AS12V
|
|
MELE0SOL006
|
|
|
20.6 |
TIMMING BELT
126MXL,W4.8
|
|
MZZZ0BEL038
|
|
|
21 |
NOISE FILTER
RNS-2010
|
|
MELE0NOI009
|
|
|
22 |
PUSH BUTTON SWITCH
DS-412R ROSH
|
|
PUSH BUTTON SWITCH
DS-412R ROSH
MELE0PUS006
|
|
|
22.1 |
SOLENOID GUIDE HINGE
.
|
|
MKIS0PLA002
|
|
|
23 |
POWER SMPS
LRS 100_12
|
|
MELE0SMP084
|
|
|
24 |
POWER SMPS
LRS 150F-12
|
|
MELE0SMP090
|
|
|
25 |
POWER SMPS
LRS 150F-5
|
|
MELE0SMP096
|
|
|
26 |
AC INPUT
DAC-13H
|
|
MELE0SWI015
|
|
|
27 |
ROCKER SWITCH
R595KDF
|
|
MELE0SWI021
|
|
|
28 |
TERMINAL BLOCK
250V 10P UL_CE
|
|
TERMINAL BLOCK
250V 10P UL_CE
MELE0TEB003
|
|
|
29 |
VOLUME KNOB
CAP BLUE
|
|
MELE0VOL007
|
|
|
30 |
PRIZE OUTLET COVER MOLD
.
|
|
PRIZE OUTLET COVER MOLD
.
MKIS0PLA001
|
|
|
30.1 |
CARD DISPENSER SPRING-A
.
|
|
CARD DISPENSER SPRING-A
.
MKIS0SPR001
|
|
|
31 |
MONEY BOX LARGE
ABS [BLACK]
|
|
MONEY BOX LARGE
ABS [BLACK]
MPUS0PLA012
|
|
|
32 |
RAM_V1
LPDDR3 4GB PC3L-12800 SAMSUNG
|
|
RAM_V1
LPDDR3 4GB PC3L-12800 SAMSUNG
MZZZ0000698
|
|
|
33 |
BEARING
DR19-B
|
|
MZZZ0BEA117
|
|
|
34 |
KEY ONLY 7001
2EA 1SET_WITH RING
|
|
KEY ONLY 7001
2EA 1SET_WITH RING
MZZZ0KEY035
|
|
|
35 |
KEY ASS'Y 7001
7001 ONLY BODY
|
|
KEY ASS'Y 7001
7001 ONLY BODY
MZZZ0KEY076
|
|
|
36 |
LCD MONITOR_LA230NTVXC
23INCH_KIOSK
|
|
LCD MONITOR_LA230NTVXC
23INCH_KIOSK
MZZZ0LCD018
|
|
|
37 |
LCD MONITOR_LA230JTVUD
23INCH_TOUCH KIOSK
|
|
LCD MONITOR_LA230JTVUD
23INCH_TOUCH KIOSK
MZZZ0LCD019
|
|
|
38 |
LOCK KEY
ELIGHT LC
|
|
MZZZ0MEM021
|
|
|
39 |
WINDOW LICENSE
WINDOW 10_IOT_CBB
|
|
WINDOW LICENSE
WINDOW 10_IOT_CBB
MZZZ0OSS001
|
|
|
39.1 |
KIOSK COIN MAIN PCB ASS'Y
COIN RAIL
|
|
KIOSK COIN MAIN PCB ASS'Y
COIN RAIL
AKIS0PCB006
|
|
|
39.2 |
CARD DISPENSER FRONT MASK
PC
|
|
CARD DISPENSER FRONT MASK
PC
MKIS0PLA003
|
|
|
40 |
RAM V2
DDR4-3200 4GB PC4-25600
|
|
RAM V2
DDR4-3200 4GB PC4-25600
MZZZ0PCB100
|
|
|
41 |
SPEAKER
MID 4.5"+TW1/2" 8Ω W-C-100 F BK
|
|
SPEAKER
MID 4.5"+TW1/2" 8Ω W-C-100 F BK
MZZZ0SPE021
|
|
